Hybrid PV Inverter
Our hybrid PV (Solar) inverters are highly integrated with MPPT, battery charge/discharge controller and DC/AC inverter. To install these products, you just simply connect wires, turn it on and it work. Special design for high humidity, high surge power, and 300V AC voltage endurance, they will work well in any region and application.
Features
- High efficiency
- High charging current up to 100A
- AC voltage up to 300V
- Suitable for critical environment
- 200% overload
- Wall/Rack Mount Cabinet
- Grid-tie/off-grid operation
- Parallel & 3-phase operations
- Battery-less operationUnique!
- UPS, 4mS transfer timeUnique!
There are 3 series hybrid inverters for different applications.
Comparisons

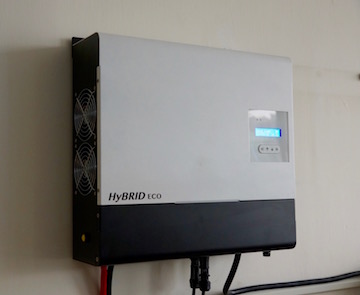

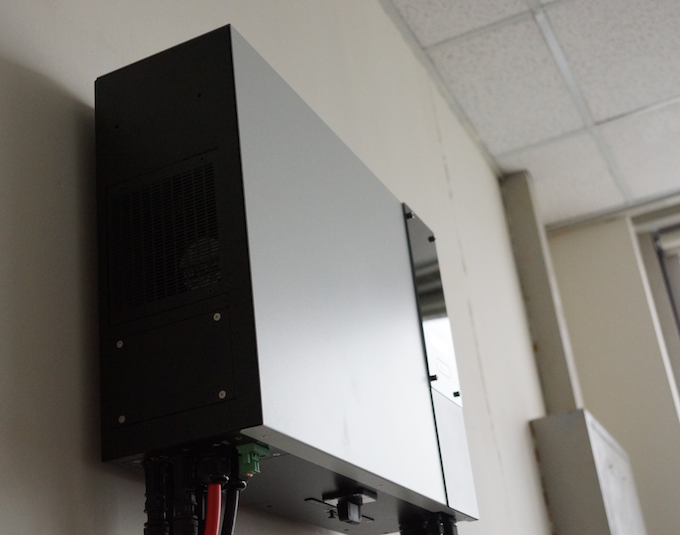

Models compared: PH-6000N-D (PRO), PH-5000N-D (ECO) and PH-6000N-U (DUO)
Hybrid PRO | Hybrid ECO | Hybrid DUO | |
Design for | High performance, critical load and longer life | Budget installation and applications | Split-phase (120/240V) AC system |
Efficiency | 96.5% | 96% | 96.5% |
Maximum PV | 6000W | 5000W | 6000W |
MPPT | Yes, 2 independent | Yes, one | Yes, 2 independent |
Nominal AC Voltage | 230V | 230V | 120/240V |
AC O/P Waveform | High frequency, pure sine wave | High frequency, pure sine wave | High frequency, pure sine wave |
AC Power (Grid-tie) | 5000VA/5000W | 5000VA/5000W | 5000VA/5000W |
AC Power (Backup) | 5000VA/5000W | 5000VA/4000W | 5000VA/4000W |
Overload | 200% | 200% | 200% |
Battery Voltage | 48V | 48V | 48V |
Charging Current | 100A | 60A | 60A |
Multiple-unit Connection | Single phase and 3 phase (Y or Delta), up to 9 units | Single phase, up to 6 units | Coming |
Dimension | 580/408/168 | 425/388/120 | 580/408/168 |
Weight | 24.2kg | 14kg | 27kg |
Cloud monitoring | Optional CloudLOG | Optional CloudLOG | Optional CloudLOG |
Battery-less Operations | Yes | Yes | Yes |
Transfer Time | 4mS | 4mS | 10mS |
Please visit Hybrid PROTM PV inverter for detail information
Please visit Hybrid ECOTM PV inverter for detail information
Please visit Hybrid DUOTM PV inverter for detail information
